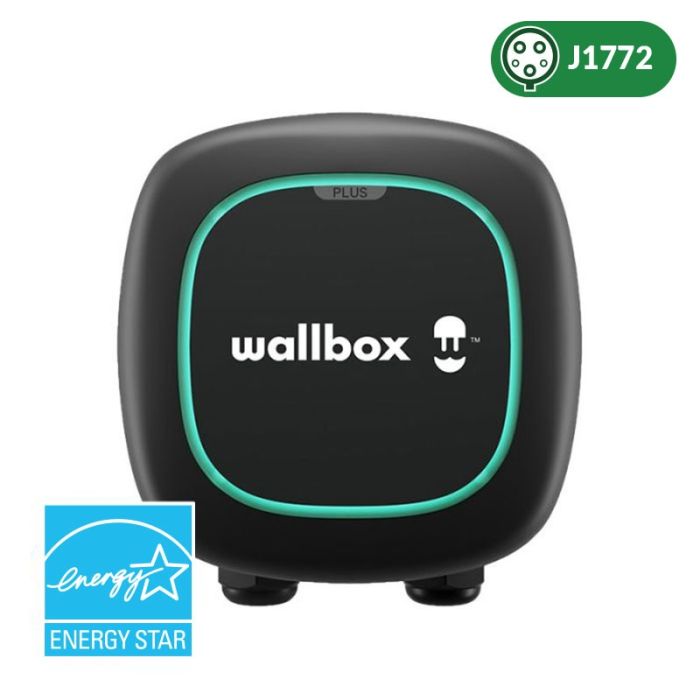

Wallbox 40A NEMA 14-50 Plug-in EV Charger
The Wallbox Pulsar Plus level 2 smart EV charger offers the best of both small size and powerful performance for faster electric vehicle charging at home. This unit comes with a NEMA plug for installation.
Designed for easy installation, Pulsar Plus’ J1772 connector can charge any electric car on the market today up to 7x faster than standard (120v) charging cables that come with most EVs. This home EV charger is simple and efficient with the integrated myWallbox app, which allows you to control your electric vehicle charger from your smart devices via WiFi or Bluetooth.
With Pulsar Plus, you are in control of your energy use. Schedule and manage your charging sessions to maximize efficiency and save money when electrical demand and rates are low. Get the Pulsar Plus EV charger and start charging smarter.
Product Features
Connected and Smart: Connect Pulsar Plus to your smart devices using the myWallbox app to wirelessly control and monitor your charger via Wi-Fi or Bluetooth. You can also use voice-control and manage your Pulsar Plus charger using Amazon Alexa or Google Assistant.
Power Sharing: Connect two or more Pulsar Plus chargers to the same electrical circuit to safely charge multiple EVs at one time.
Onboard Intelligence: Pulsar Plus lets you plug in, charge, and manage your schedules even when you can't connect to the internet. Scheduling your charging sessions when energy is the cheapest will help you save money.
Energy Management Solutions: Pulsar Plus comes standard with Energy Management Solutions from Wallbox built inside. With the addition of a power meter (available from Wallbox), you can take control over your home energy use, including integrating your EV charging with your rooftop solar PV.
Power Boost: With Power Boost you can dynamically balance power delivery to your connected EV in harmony with your overall household energy consumption. Power Boost allows homeowners to install their Wallbox Pulsar Plus up to full power (either 40A or 48A) and not be limited by panel bandwidth.
Product Specs
- Manufacturer Model: Wallbox PUP1-U-1-5-N-002-A
- Works with all EVs
- Voice Control: Amazon Alexa and Google Assistant
- Connector Type: Type 1 (J1772)
- Maximum Current: 40Amps | 9.6kW
- Color: Matte black
- Input Voltage: NEMA 14-50
- Dimensions: 7.8"x7.9"x3.9"
- Charger Status Information: Wallbox App, myWallbox Portal
- Cable length: 25'
- Configurable Current: 6A to 40A
- Electrical Safety Certifications: UL 2594, UL 2231
- EMC Compliance: FCC Part 15 Class B
- Environmental/Enclosure Rating: NEMA Type 4 per UL 50E
- Rated Voltage AC +/-10%: 240/208V (Level 2)
