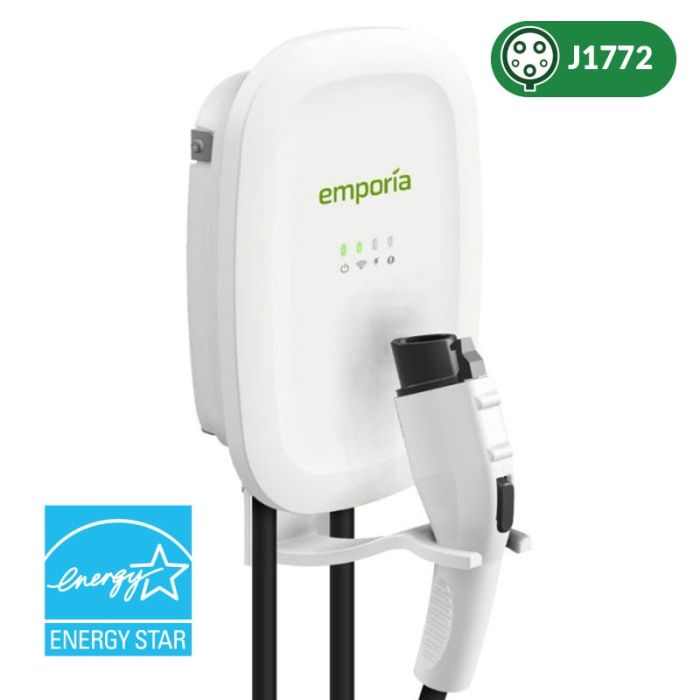

Emporia 48A NEMA 14-50 Plug-In or Hardwired EV Charger
The Emporia Charging Station is an ENERGY STAR® certified Level 2 EV charger that charges any electric vehicle up to 40 amps with NEMA 14-50P or up to 48 amps with hardwired installation.
Works with all electric cars and installs easily indoors or out. Use the Emporia app to schedule charging when electricity is cheapest and see all your charging data and energy consumption in one place.
Product Features
Compatibility: 24' cable with an SAE-J1772 connector makes it compatible with all electric vehicles (adapter required for Tesla).
Durability: Watertight NEMA Type 4 enclosure is ideal for indoor or outdoor installation.
Wireless Controls: Schedule charging with the iPhone/Android app, and monitor your energy use with real-time energy data (requires 2.4 GHz WiFi internet connection).
Product Specs
- Manufacturer Model: EMEVSE1UL
- Type: Level 2 / 48A
- Input Voltage: 208 / 240VAC @ 50 / 60Hz
- Power Charge: 11.5kW (240V/48A) / 9.6kW (240V/40A) /10kW (208V/48A) / 8.3kW (208V/40A)
- Power Wiring: NEMA Type 14-50P (up to 40A) with 24" cable compliant with 2017 NEC Section 625.17(A)(3) / Hardwired (up to 48A)
- Connector: 24' cable SAE J1772 connector - Compatible with any EV (adapter required for Tesla)
- Dimensions: Charging Station: 12.6" x 9" x 3.4" (320mm x 230mm x 86mm); Charging Gun: 5.3" x 2.2" (135mm x 56mm)
- Enclosure: Watertight NEMA Type 4 indoor/outdoor
- Certifications: ENERGY STAR certified, UL certified, FCC Parts 15b & c
- WiFi: 2.4 GHz 802.11b/g/n
- FCC ID: 2AS6P-EMEVSE1
- Dedicated Breaker/Max Charge:
- 15A (2.9kW / 12A max charge)
- 20A (3.8kW / 16A max charge)
- 25A (4.8kW / 20A max charge)
- 30A (5.8kW / 24A max charge)
- 35A (6.7kW / 28A max charge)
- 40A (7.7kW / 32A max charge)
- 45A (8.6kW / 36A max charge)
- 50A (9.6kW / 40A max charge)
- 60A (11.5kW / 48A max charge) Hardwired Only
- 70A (11.5kW / 48A max charge) Hardwired Only
- 80A (11.5kW / 48A max charge) Hardwired Only
